TRUSS 200 × 200

Not just structure.It is the staging.

200mm box truss carries the stage — and becomes the largest graphic on it. We don't stop at standing it up. We add light and image until the structure itself is the design.

Ask about a truss buildTell us the site and we'll shape the build

SPEC

200 Box Truss — what it's made of

Aluminium truss with a 200mm square section. Combine lengths, turn direction at the corners, and you can form straight runs, squares or polygons.

200mm box truss illustration — What a section looks like
Four main tubes form the corners of a square, tied together by a zigzag of thinner tubes. Each end carries a plate that bolts to the next section.

Lengths

Main beams and columns

Height adjustment, columns

Dimension fitting

0.5m

Fine adjustment

Six-way corner (cube)

A corner block that can extend in six directions. This is where the build turns — L shapes, U shapes, portals and three-dimensional frames.

The illustration above is for reference. Length drawings show the 200 × 200mm truss from the side, true to scale against 3m.

⛐ We count quantities by length rather than quoting «one truss set». It's easier for both sides to see exactly what is used.

HOW IT'S BUILT

Change the height and the build changes

For a banner frame, a taller print means longer columns and a beam across the top to hold it. We don't reuse the same build at a different height.

H 2.5m

2 installers

Low banner · columns only

200 truss 2m × 4
Six-way corner × 4

A low banner stands on columns alone.

H 3.5m

3 installers

Tall banner · beams added

200 truss 3m × 6
200 truss 2m × 4
Six-way corner × 6

Height brings in 3m beams, and crew size rises with it.

More structure means more crew. Truss is raised by people — under-crewing a build is what pushes a schedule.

WHAT WE MAKE WITH IT

Four things we build from truss

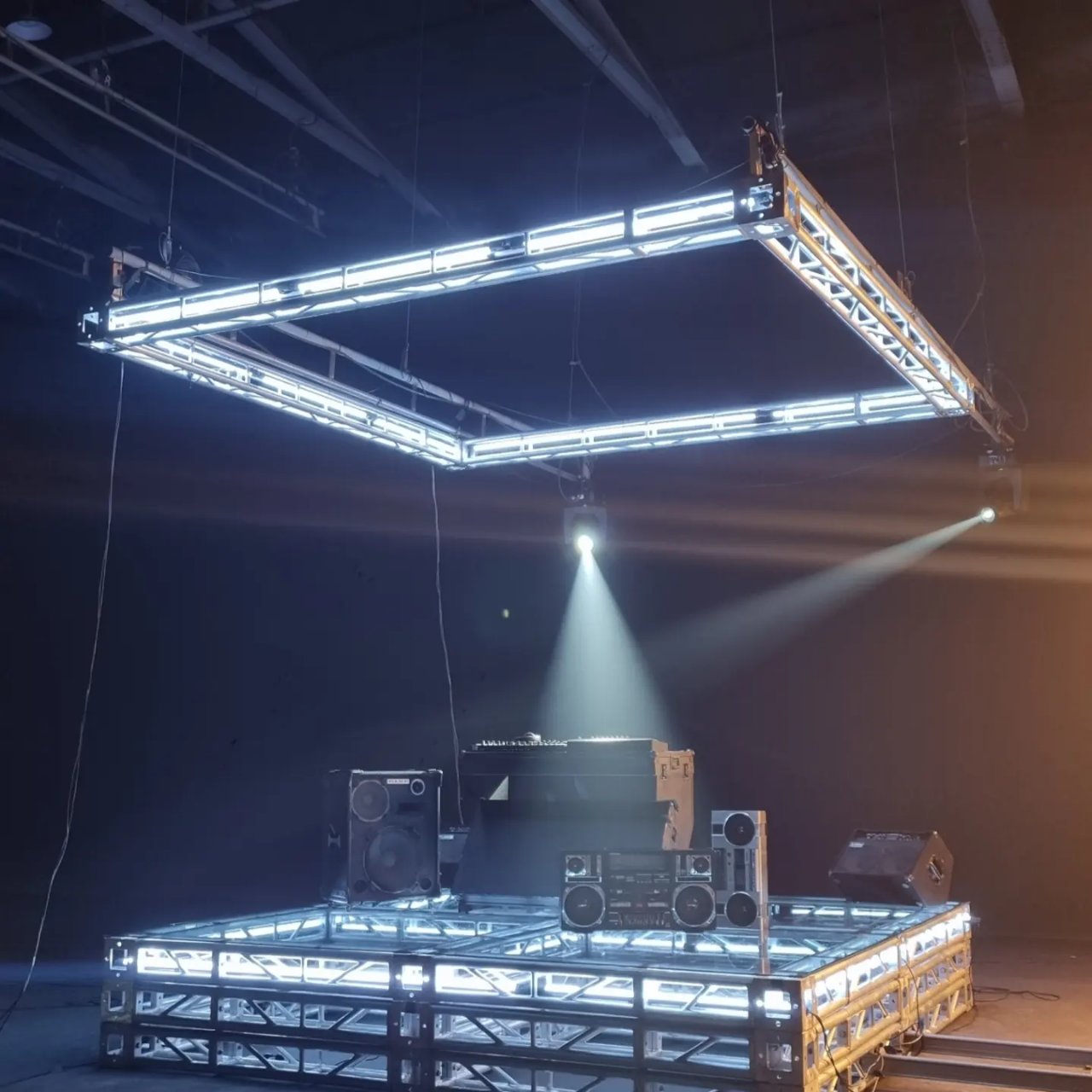

Lit rig

Squares and diamonds layered overhead, with the truss itself lit. Fixtures don't just hang from it — the truss becomes the glowing graphic.

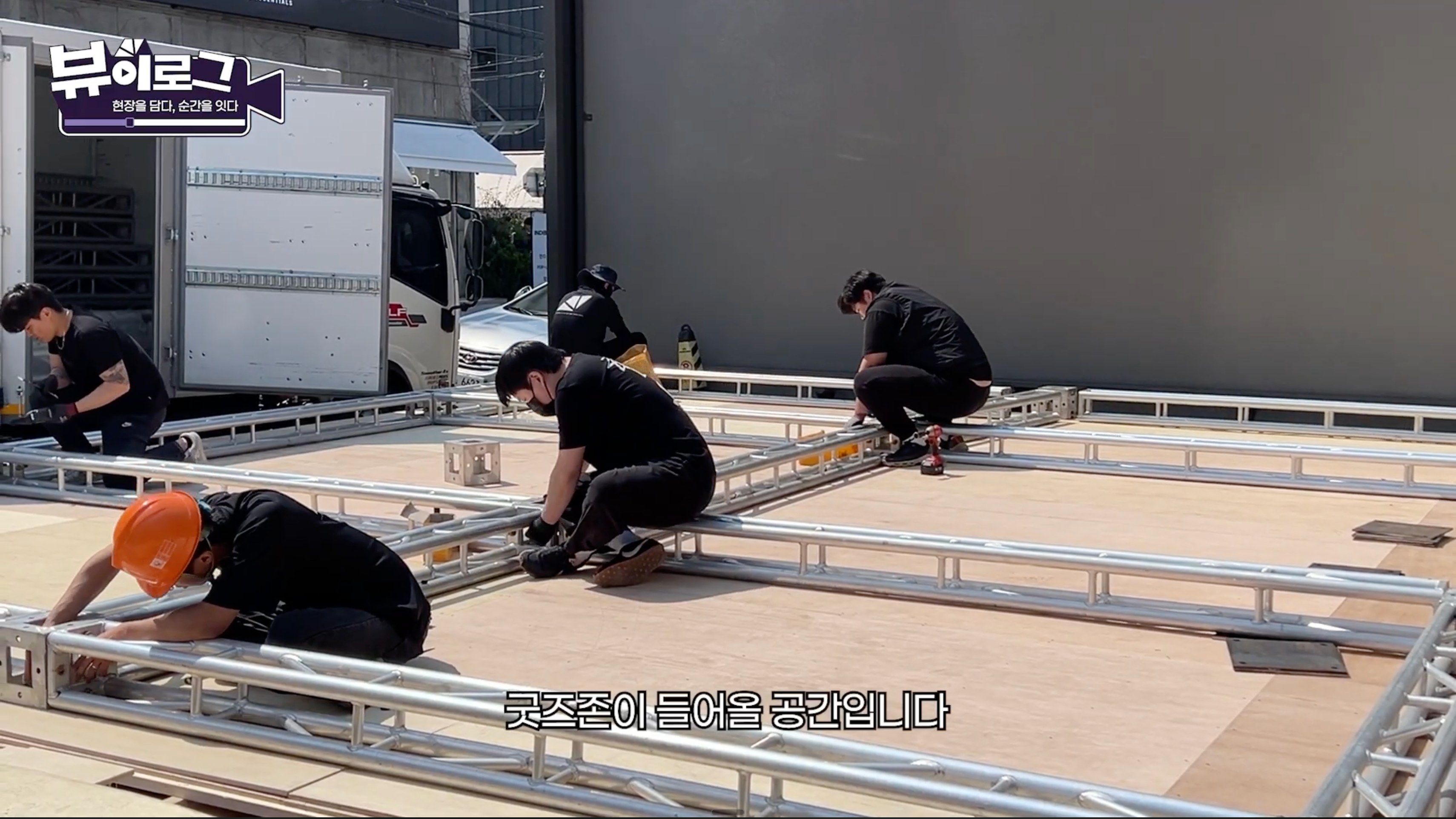

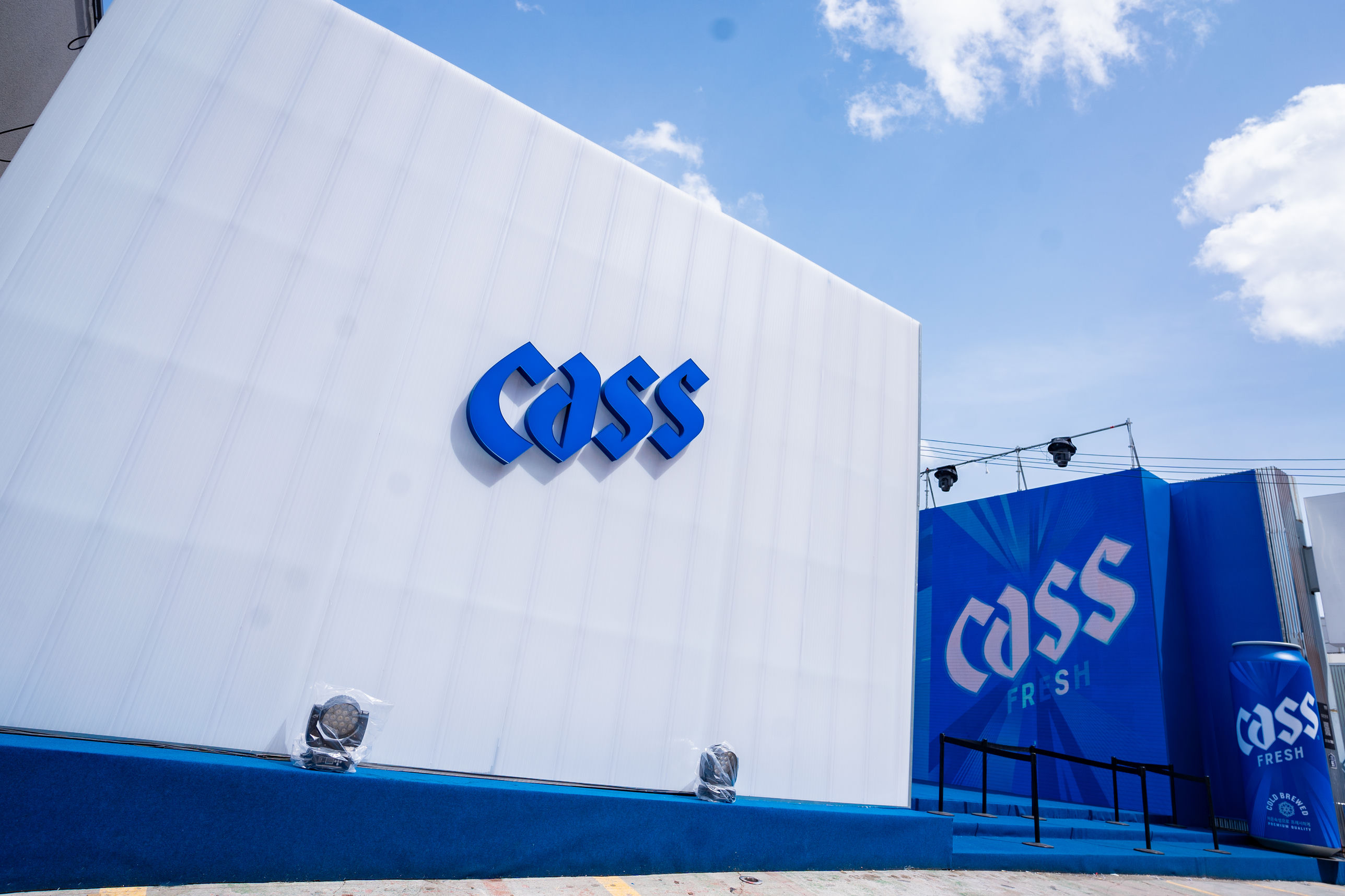

Building a structure

Columns and beams in truss, then walls over them — a whole building stands in an empty yard. Pop-up stores and brand pavilions, built from scratch.

Truss wall

A truss frame wrapped in a printed banner becomes a wall — a large graphic wall of any size, even where there is no wall.

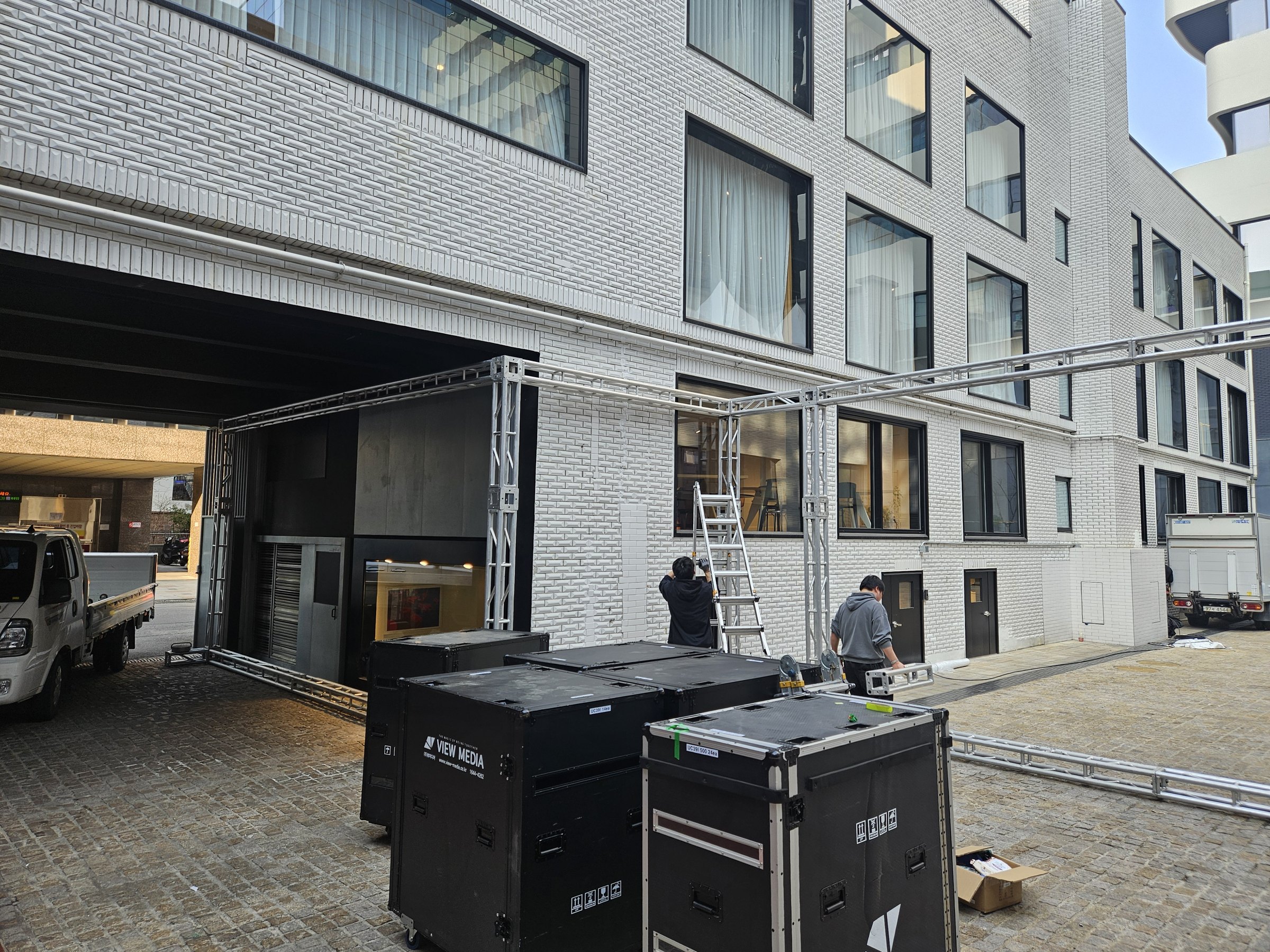

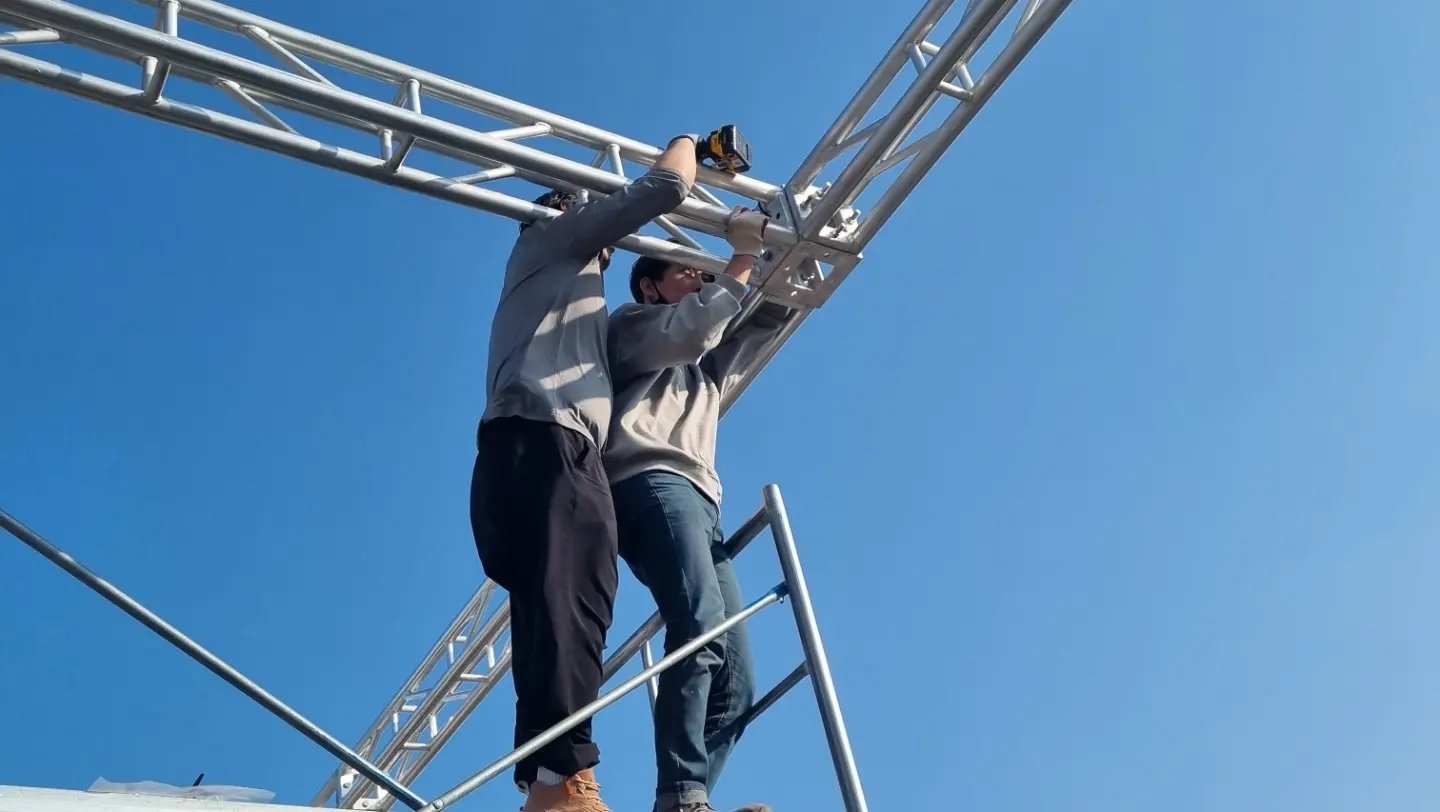

Gates · structural forms

Portal gates, photo-zone frames, brand forms. Away from the stage, truss is still the material that makes shape.

CASES

How it actually looked

AFTER · banner truss wall — NEXON FC Mobile · NEXT FOOTBALL showcase
Wrap a truss frame in a banner
A 12.6m wide, 3.6m high frame in 200 box truss and cubes, then wrapped in a printed banner — a brand wall stands in an empty forecourt.

BEFORE · truss frame — NEXON FC Mobile · NEXT FOOTBALL showcase
Wrap a truss frame in a banner
A 12.6m wide, 3.6m high frame in 200 box truss and cubes, then wrapped in a printed banner — a brand wall stands in an empty forecourt.

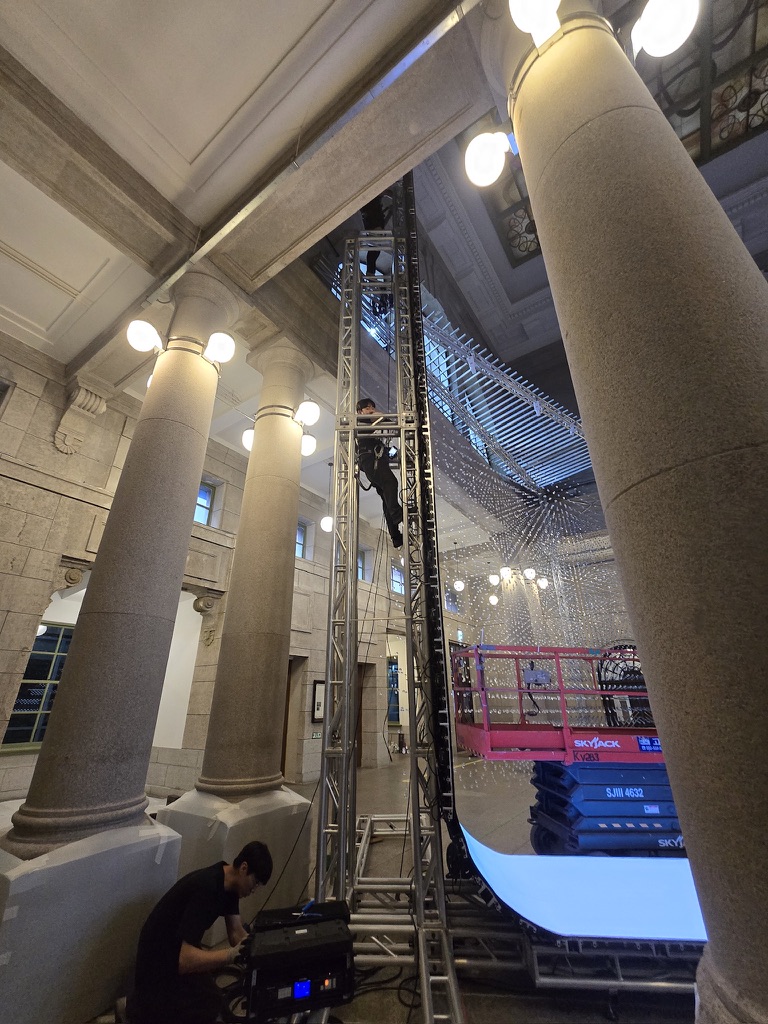

AFTER · on site — Culture Station Seoul 284 · old Seoul Station hall
A truss tower for a 7.6m vertical screen
Beside a steam locomotive, a two-column 200 box truss tower carries a 7.6m flexible LED that curves down onto the floor — structurally reviewed and modelled in 3D first, then built exactly as designed, free-standing with nothing fixed to the heritage building.

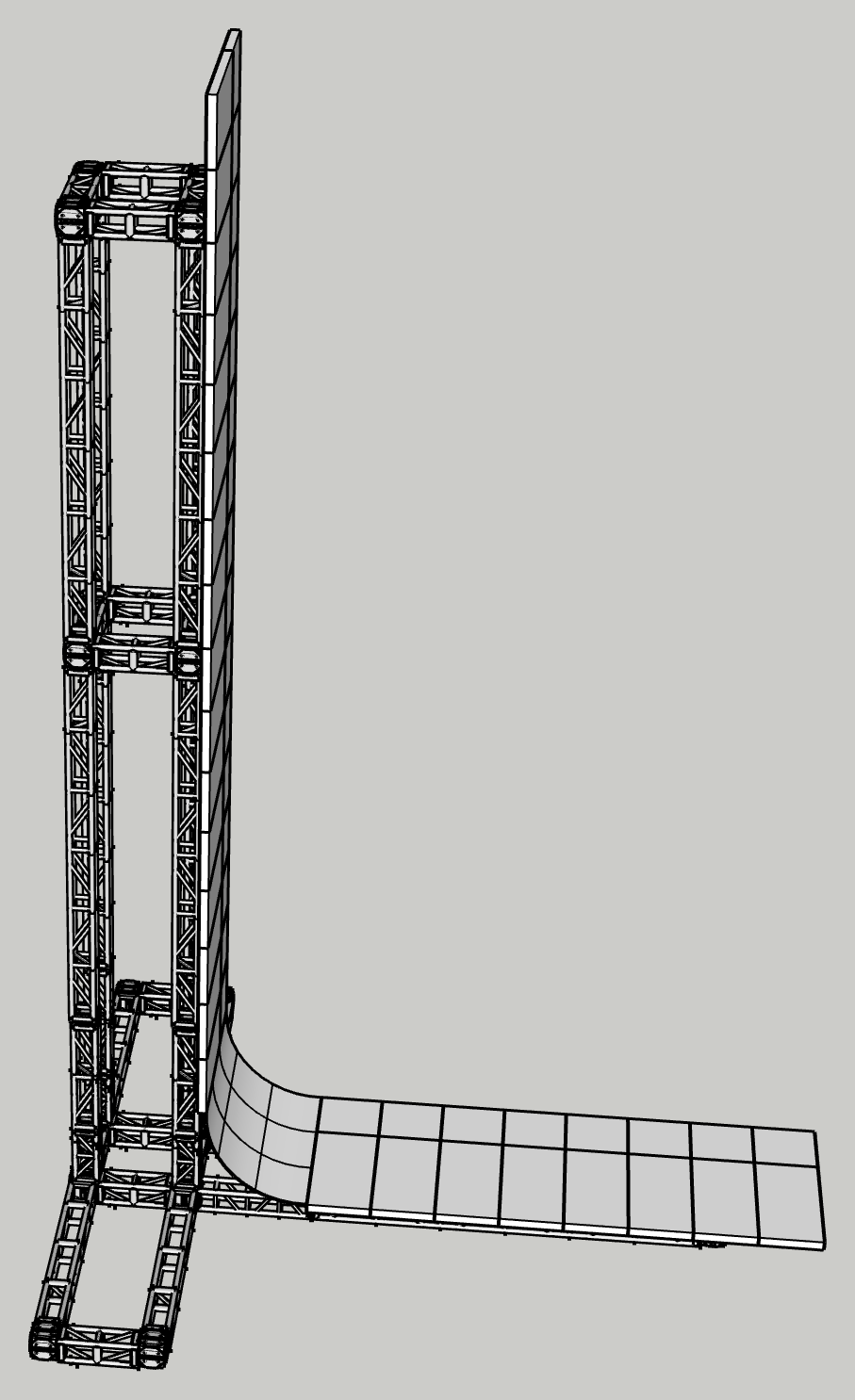

BEFORE · structural review — Culture Station Seoul 284 · old Seoul Station hall
A truss tower for a 7.6m vertical screen
Beside a steam locomotive, a two-column 200 box truss tower carries a 7.6m flexible LED that curves down onto the floor — structurally reviewed and modelled in 3D first, then built exactly as designed, free-standing with nothing fixed to the heritage building.

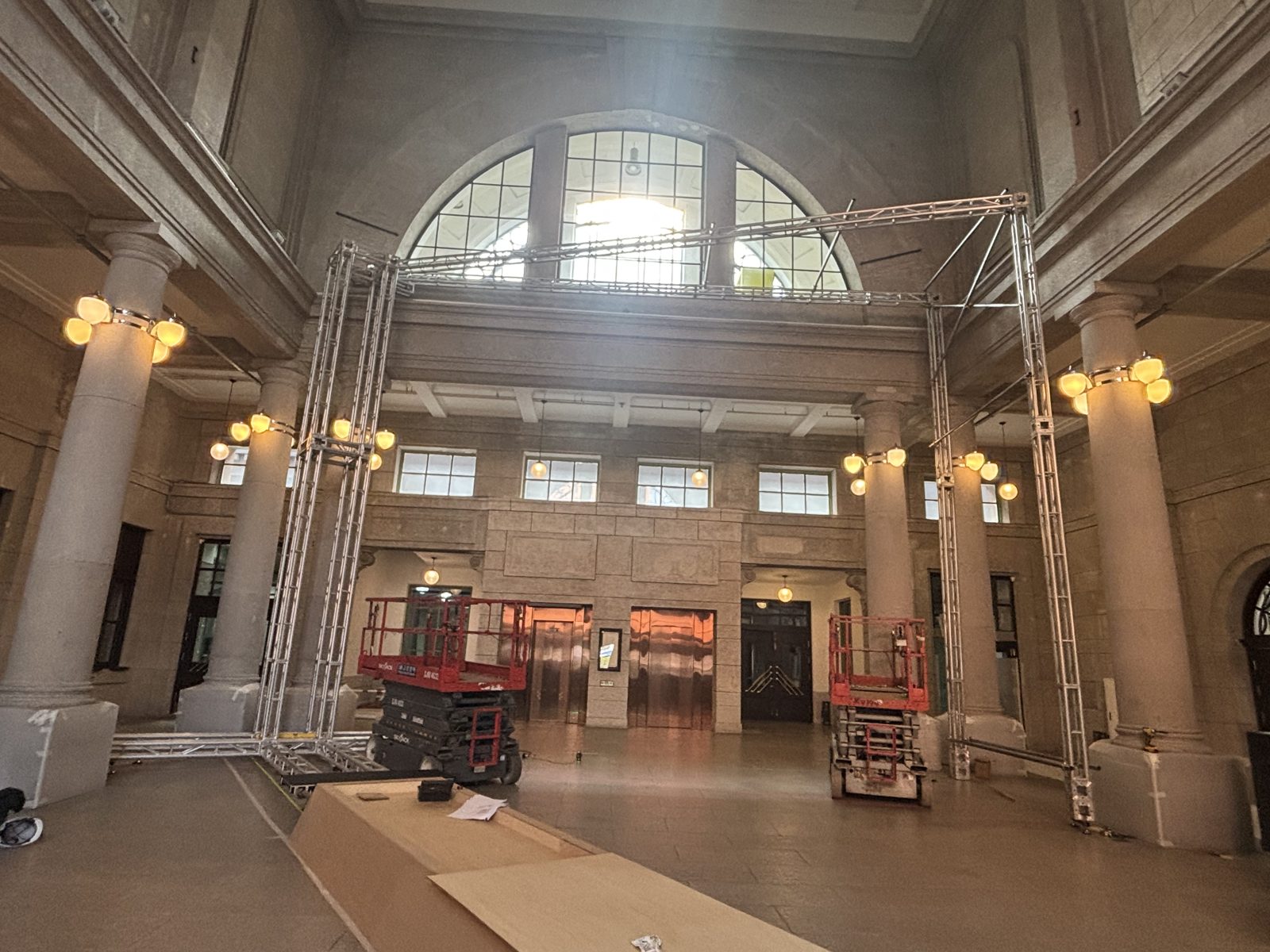

Raising the truss frame with scissor lifts

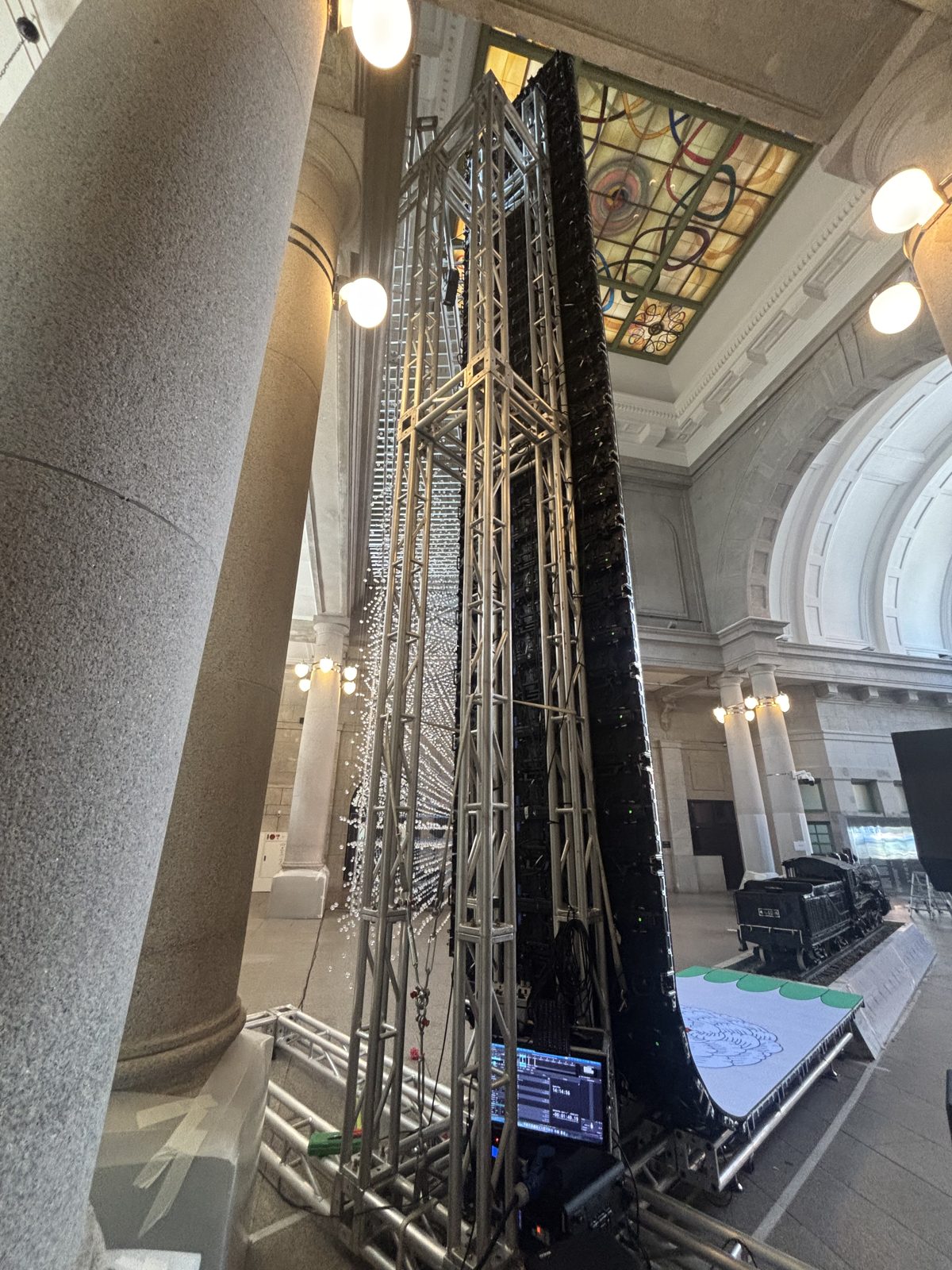

Hanging the flexible LED on the truss tower

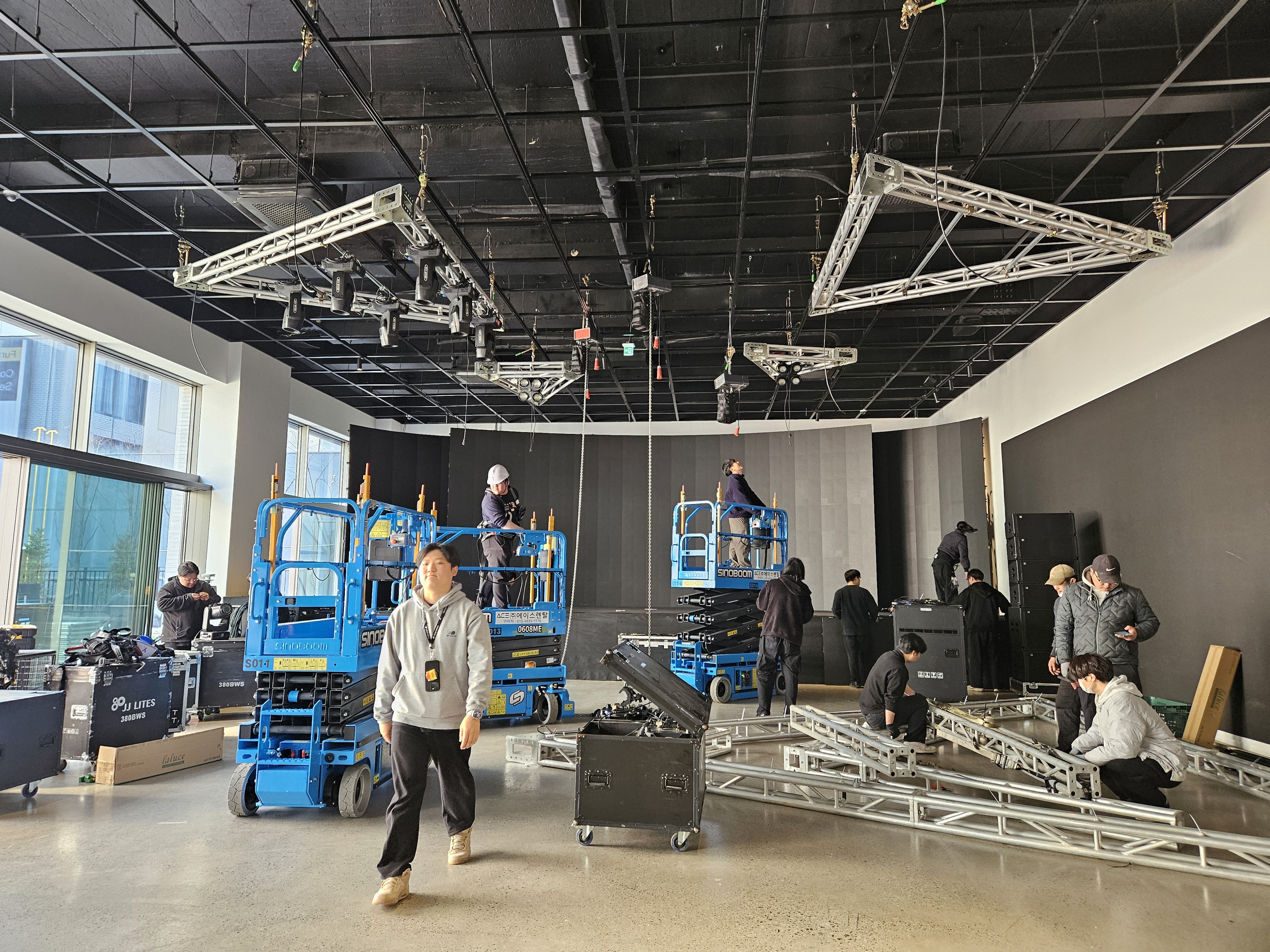

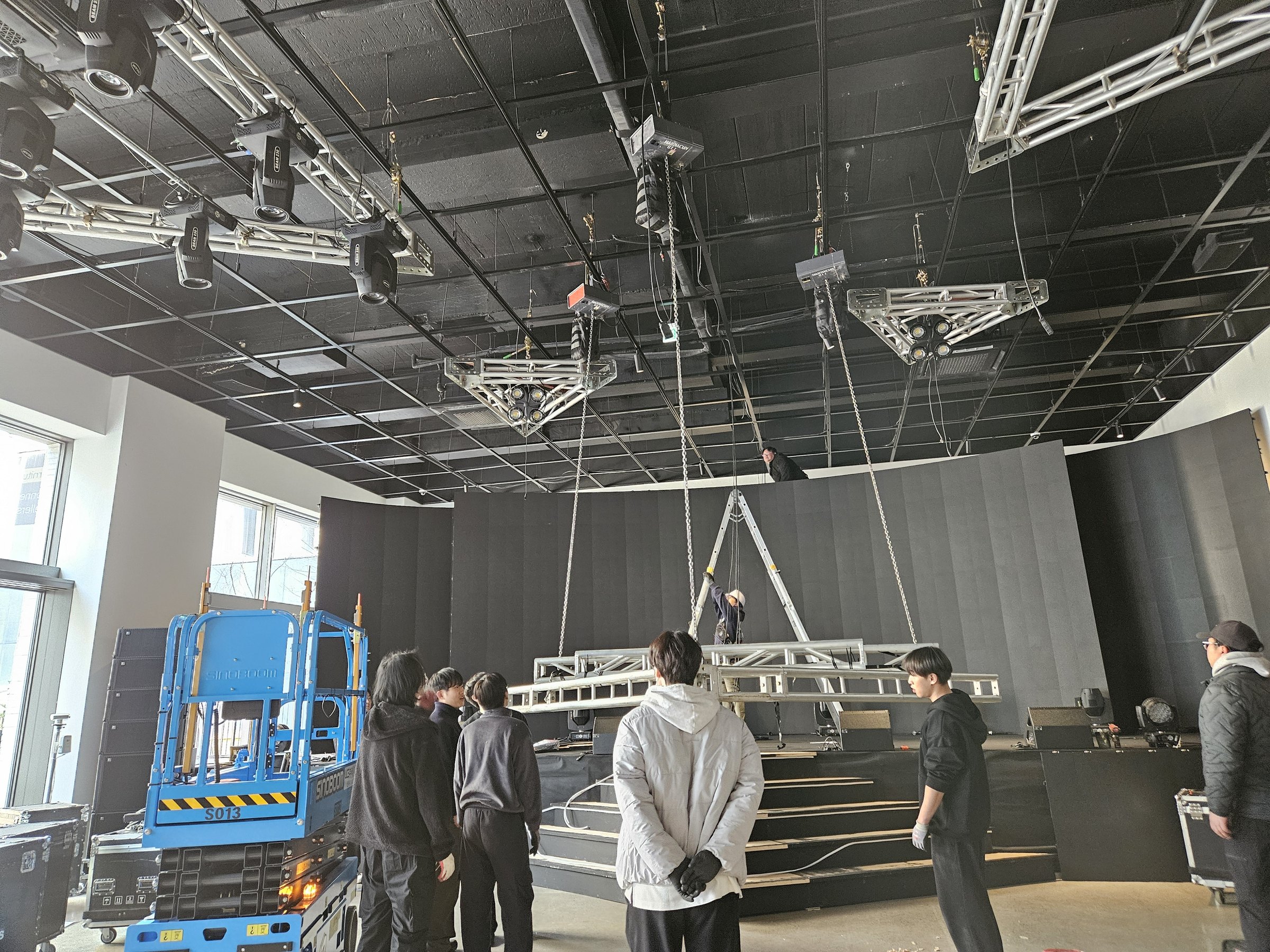

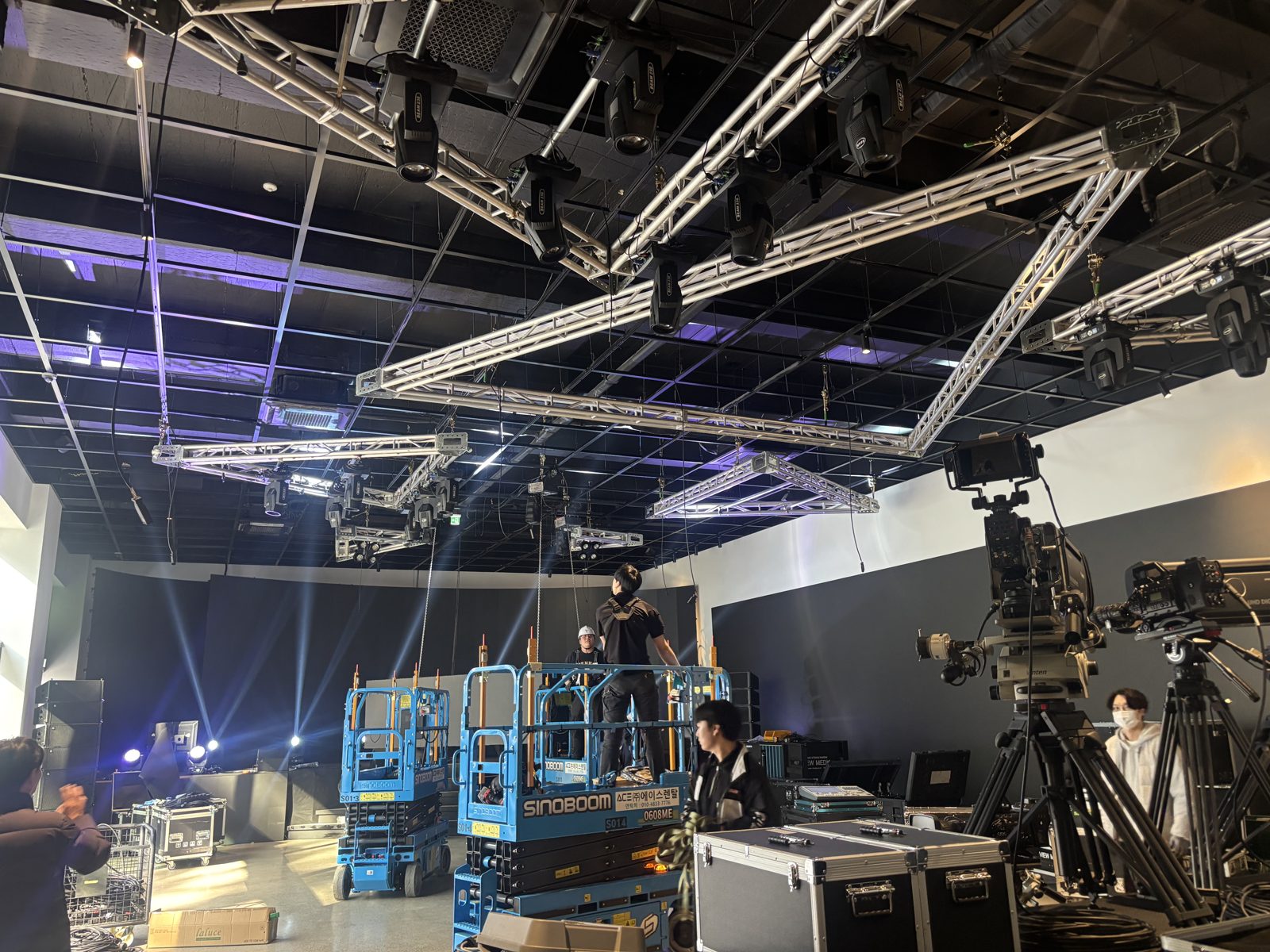

Flying the truss rig — NEXON FC Mobile showcase · indoor
A glowing triangle rig overhead
200 box truss built into triangles and squares, flown from the ceiling, fitted with moving lights and lit from inside so the structure itself glows.

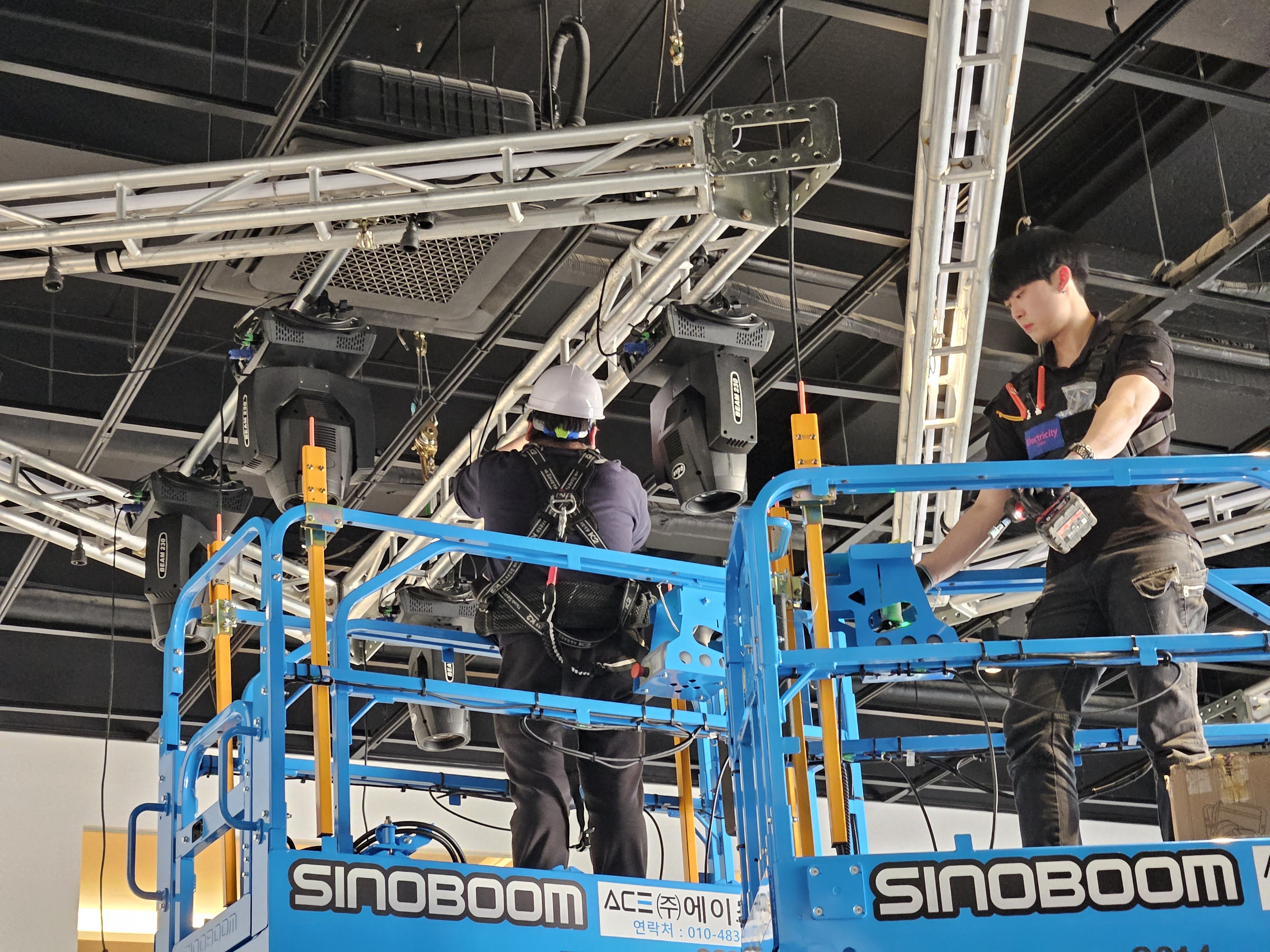

Fitting moving lights — NEXON FC Mobile showcase · indoor
A glowing triangle rig overhead
200 box truss built into triangles and squares, flown from the ceiling, fitted with moving lights and lit from inside so the structure itself glows.

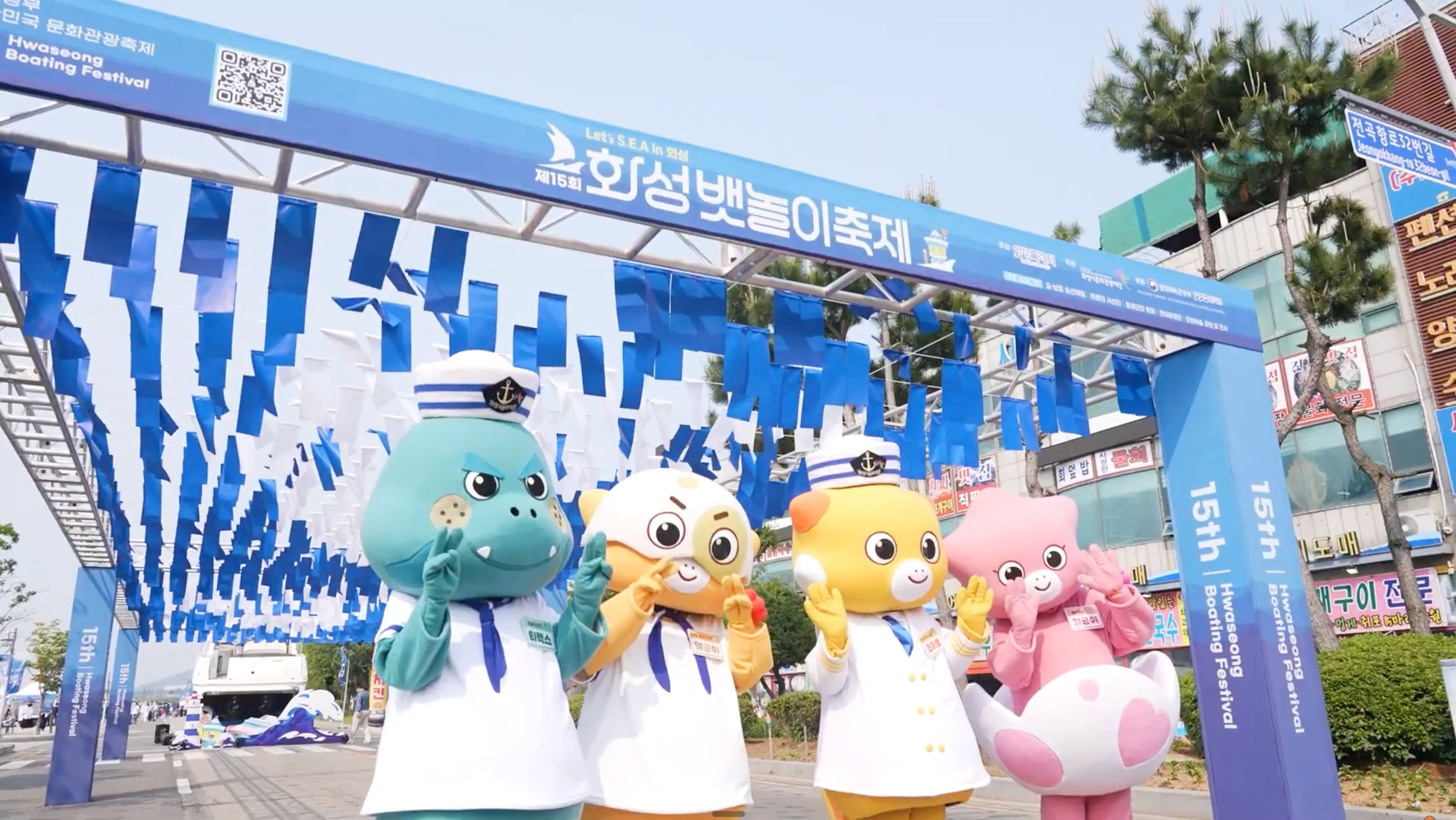

15th Hwaseong Boating Festival · Jeongok Port
An entrance turned into a sea tunnel
A truss portal and roof beams with rows of blue and white flags hung beneath — visitors walk through the waves into the festival.

WHY

The people who build it are the people who run it

We own the equipment

Truss, LED, audio and lighting are ours, and we install and operate them ourselves — no layers in between, so schedule and cost are settled directly.

Install and strike crew included

We don't drop equipment and leave. The same team stays from load-in to strike.

We model it first

Structure, circulation and sightlines are checked in drawings and 3D before we go to site.

Image included

One team hangs the LED on the truss and runs the content on it.

CONTACT

Just tell us about the site

Venue, date and rough screen size are enough for us to shape a build and a ballpark scale. You don't need drawings. One photo is enough to start.

Ask about a truss build +82 1644-4262
